本产品采用弧齿锥齿轮和平面推力轴承，具有运转平稳、扭矩大、噪音小、效率高的优点。适用于闸阀、截止阀，输出与阀门阀杆以螺母（材质分铜螺母、球铁螺母等）形式配合。螺母可以取出，用户根据阀杆加工螺母的内螺纹
This product adopts the spiral bevel gear and plane thrust bearing, has the advantages of stable operation, large torque, low noise, high efficiency. Applicable to the gate valve, globe valve, output with the valve stem nut ( material bronze nut, ductile iron nut) forms complexes. The nut can be removed, the user according to the threaded stem handing nut.

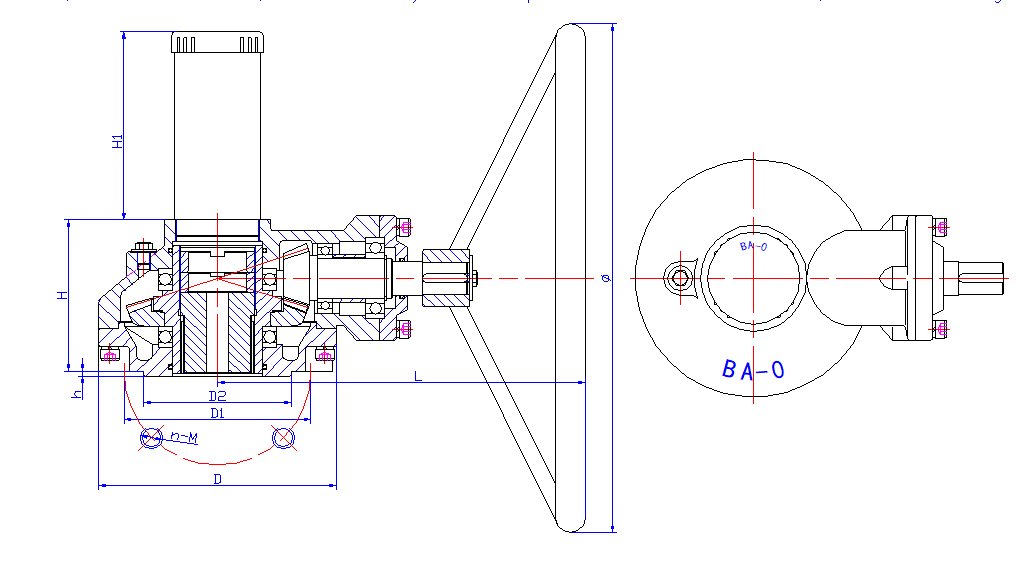

| 规格Model | 速比Ratio | 最大转矩TorqueNm | 最大推力ThrustN | D | D1 | D2 | n-M | H | H1 | h | φ | L | 阀杆最大直径Max stem dia |
| BA-00 | 2.8:1 | 480 | 61000 | 180 | 140 | 100 | 4-M16 | 119 | 196 | 3 | 450 | 288 | 35 |
| BA-0 | 3:1 | 750 | 98000 | 210 | 165 | 130 | 4-M20 | 135 | 257 | 4 | 600 | 355 | 40 |
| BA-1 | 4:1 | 1500 | 196000 | 276 | 254 | 200 | 8-M16 | 164 | 261 | 4 | 600 | 402 | 50 |
| BA-2 | 5.2:1 | 2840 | 340000 | 388 | 298 | 230 | 8-M20 | 227 | 341 | 4 | 600 | 491 | 60 |
0
本产品采用弧齿锥齿轮和平面推力轴承，具有运转平稳、扭矩大、噪音小、效率高的优点。适用于闸阀、截止阀，输出与阀门阀杆以螺母（材质分铜螺母、球铁螺母等）形式配合。螺母可以取出，用户根据阀杆加工螺母的内螺纹
This product adopts the spiral bevel gear and plane thrust bearing, has the advantages of stable operation, large torque, low noise, high efficiency. Applicable to the gate valve, globe valve, output with the valve stem nut ( material bronze nut, ductile iron nut) forms complexes. The nut can be removed, the user according to the threaded stem handing nut.
| 规格Model | 速比Ratio | 最大转矩TorqueNm | 最大推力ThrustN | D | D1 | D2 | n-M | H | H1 | h | φ | L | 阀杆最大直径Max stem dia |
| BA-00 | 2.8:1 | 480 | 61000 | 180 | 140 | 100 | 4-M16 | 119 | 196 | 3 | 450 | 288 | 35 |
| BA-0 | 3:1 | 750 | 98000 | 210 | 165 | 130 | 4-M20 | 135 | 257 | 4 | 600 | 355 | 40 |
| BA-1 | 4:1 | 1500 | 196000 | 276 | 254 | 200 | 8-M16 | 164 | 261 | 4 | 600 | 402 | 50 |
| BA-2 | 5.2:1 | 2840 | 340000 | 388 | 298 | 230 | 8-M20 | 227 | 341 | 4 | 600 | 491 | 60 |
0
本产品采用弧齿锥齿轮和平面推力轴承，具有运转平稳、扭矩大、噪音小、效率高的优点。适用于闸阀、截止阀，输出与阀门阀杆以螺母（材质分铜螺母、球铁螺母等）形式配合。螺母可以取出，用户根据阀杆加工螺母的内螺纹
This product adopts the spiral bevel gear and plane thrust bearing, has the advantages of stable operation, large torque, low noise, high efficiency. Applicable to the gate valve, globe valve, output with the valve stem nut ( material bronze nut, ductile iron nut) forms complexes. The nut can be removed, the user according to the threaded stem handing nut.
| 规格Model | 速比Ratio | 最大转矩TorqueNm | 最大推力ThrustN | D | D1 | D2 | n-M | H | H1 | h | φ | L | 阀杆最大直径Max stem dia |
| BA-00 | 2.8:1 | 480 | 61000 | 180 | 140 | 100 | 4-M16 | 119 | 196 | 3 | 450 | 288 | 35 |
| BA-0 | 3:1 | 750 | 98000 | 210 | 165 | 130 | 4-M20 | 135 | 257 | 4 | 600 | 355 | 40 |
| BA-1 | 4:1 | 1500 | 196000 | 276 | 254 | 200 | 8-M16 | 164 | 261 | 4 | 600 | 402 | 50 |
| BA-2 | 5.2:1 | 2840 | 340000 | 388 | 298 | 230 | 8-M20 | 227 | 341 | 4 | 600 | 491 | 60 |
